Burlington P2 Low Or High Level Pan
Chrome and gold finishes available
Description
The Burlingtion P2 high or low level pan together with the cistern and flush pipe kit creates a stunning period sanitary ware item.
Made from Vitreous China this traditional styling low level toilet is water tested for flushing and air pressure tested for leaks.
NanoGlaze coating in the bowl makes cleaning easier and the toilet box rims ensures that the flush water is spread evenly in the internal of the pan.

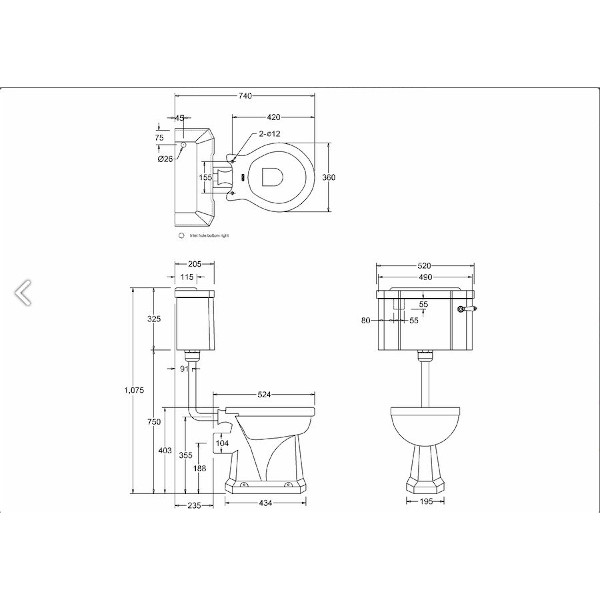

Additional Information Low Level installation
Low Level wc can be used where the soil pipe is located in the floor. The pan can be located over the soil pipe by cutting the horizontal flush pipe to length.
The cistern height can be varied by cutting the vertical flush pipe to length – maximum height is 1,075mm to the top of the cistern, minimum height is 900mm.

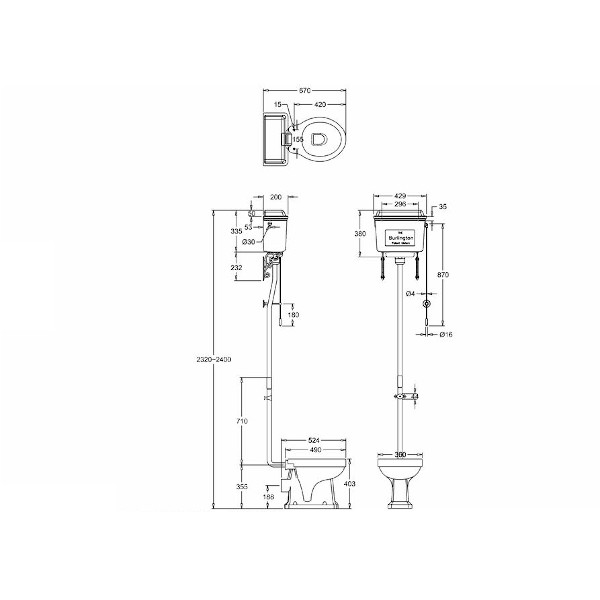

Additional Information High Level installation

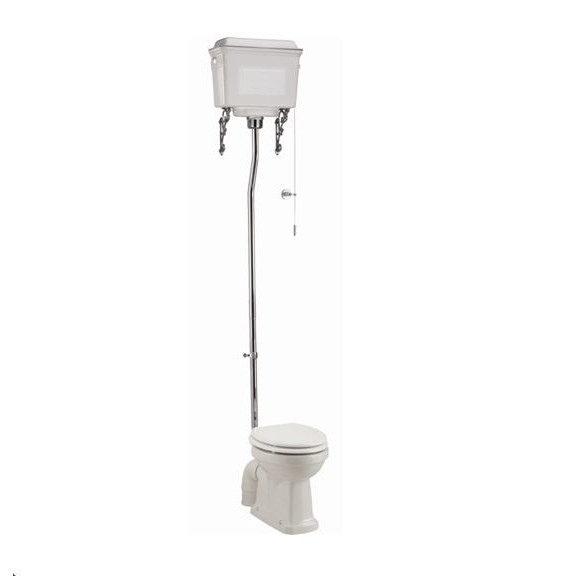

The high level wc uses a standard low level pan and special high level cistern, connected with a high level flush pipe kit T30 CHR.
The flush mechanism comes in two options : dual flush rod pull cistern C5, or single flush chain pull cistern C28S
A special flush pipe kit that allows the cistern to be placed on a wall next to the pan is available : Angled Flush Pipe Kit T34 CHR.
High Level wc can be used where the soil pipe is located in the floor. The pan can be located over the soil pipe by cutting the horizontal flush pipe to length.
The cistern height can be varied by cutting the vertical flush pipe to length – maximum height is 2,380mm to the top of the cistern, minimum height is 1,625mm.
Features
- Colour : White
- Material : Vitreous China
- Size 524 x 360 x 403mm
Download Documents
T31 Low Level Flush Pipe Fitting Instructions
C3 Close Coupled / Low Level Ceramic lever Fitting Instructions
T59 High Level Cistern Fitting Instructions
