Triton Eden Bar Diverter Mixer Shower
Eden Bar Diverter Mixer Shower suitable for for use with all water systems.
Description
The Eden range makes great showering simple with its signature elegant lever handle design, delivering precise temperature and flow control, to create the ideal shower performance for all the family.

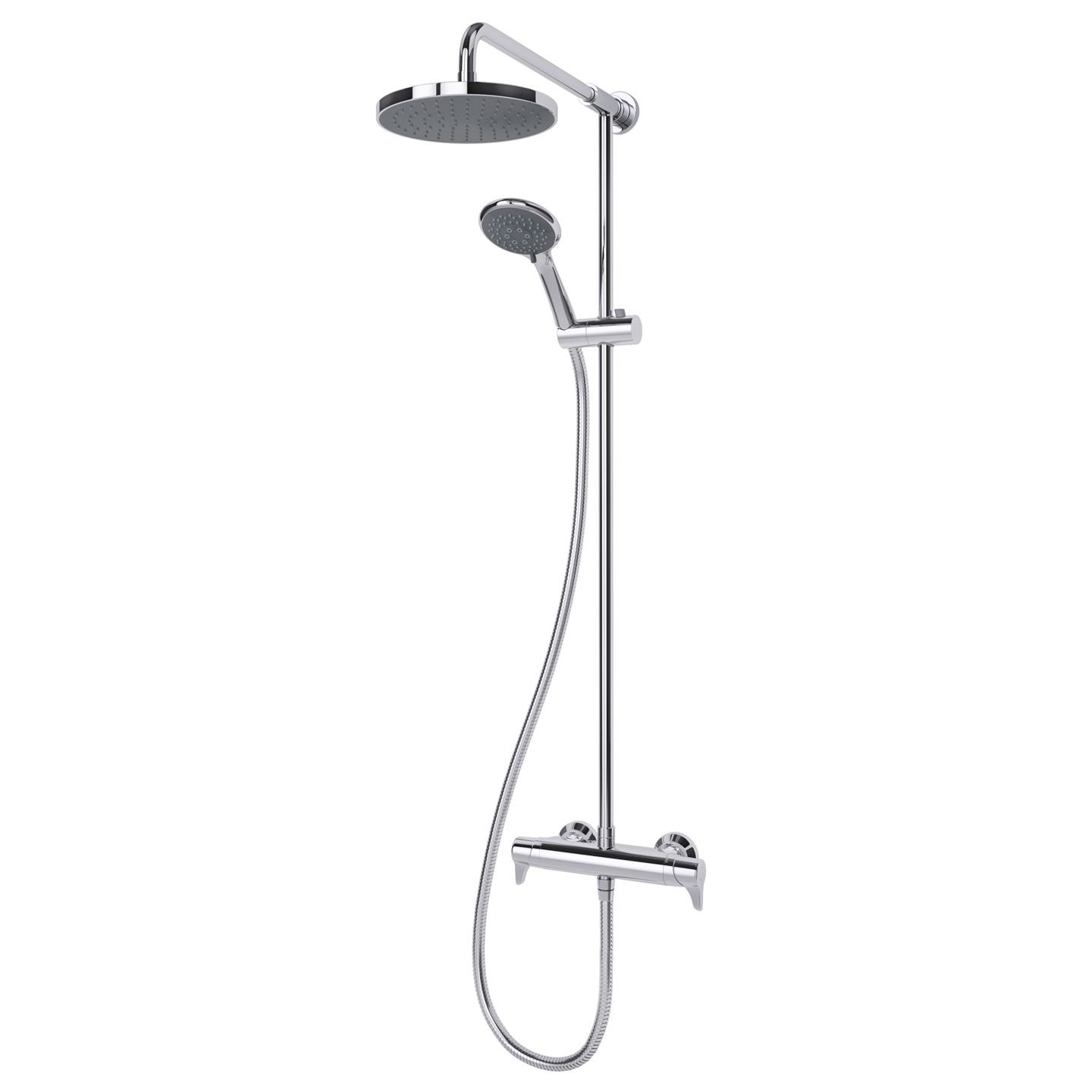

Offering a luxurious showering experience, with the Eden bar diverter, you can divert water flow between the 5 spray pattern handheld shower head and feature 200mm circular fixed drencher shower head.
Features
- Eden elegant lever metal handles – Separate flow and temperature control with clear handle markings
- Divert flow between 5 spray pattern handheld shower head and 200mm circular fixed head
- Rigid riser rail – Includes height adjustable sliding shower head holder
- Supplied with fast fit push-fit brackets for an easy installation
- Thermostatic temperature control – Maintains consistent, comfortable showering temperature
- Suitable for all water systems
- 2 year parts and labour guarantee
Product Details
- Thermostatic
- Adjustable Maximum Temperature Stop Yes
- Automatic ShutdownYes
- Separate Flow and Temperature ControlsYes
- Temperature Control Yes
- Number of Showerhead Spray Patterns5
- Number of Spray Patterns (Showerhead 2)1
- Finish Chrome
- Guarantee 2 years from date of purchase
- Shower Head Diameter110mm /4 inches (handheld shower head)
- Rub Clean NozzlesYes
- Rail Length1040mm (approx)
- Distance Between Rail Brackets530mm / 20.87inches (approx)
- Shower Head Holder MechanismTwist and lock
- Hose Length1.5m
- Hose RetainerYes
- Hose MaterialDouble interlocked stainless steel
- Colours AvailableChrome
- Plumbing SystemSuitable for all Systems
- Inlet Connections15mm push-fit (fixings to pipe) 3/4” flat face union (valve to fixings)
- Minimum Running Pressure / Flow0.5 Bar @ 8 l/min
- Maximum Running Pressure5 Bar
